The 80-Year-Old Rule That Just Got Overturned
For 80 years, aeronautical engineers have lived by a simple rule: smoother surfaces mean less drag. That rule just got broken. Researchers at Tohoku University's Institute of Fluid Science published a paper in Journal of Fluid Mechanics on May 7, 2026, showing that a surface with micro-roughness can reduce aerodynamic drag by up to 43.6% compared to a smooth surface.
The Key Metric: 1.0% Roughness Height, 43.6% Drag Reduction

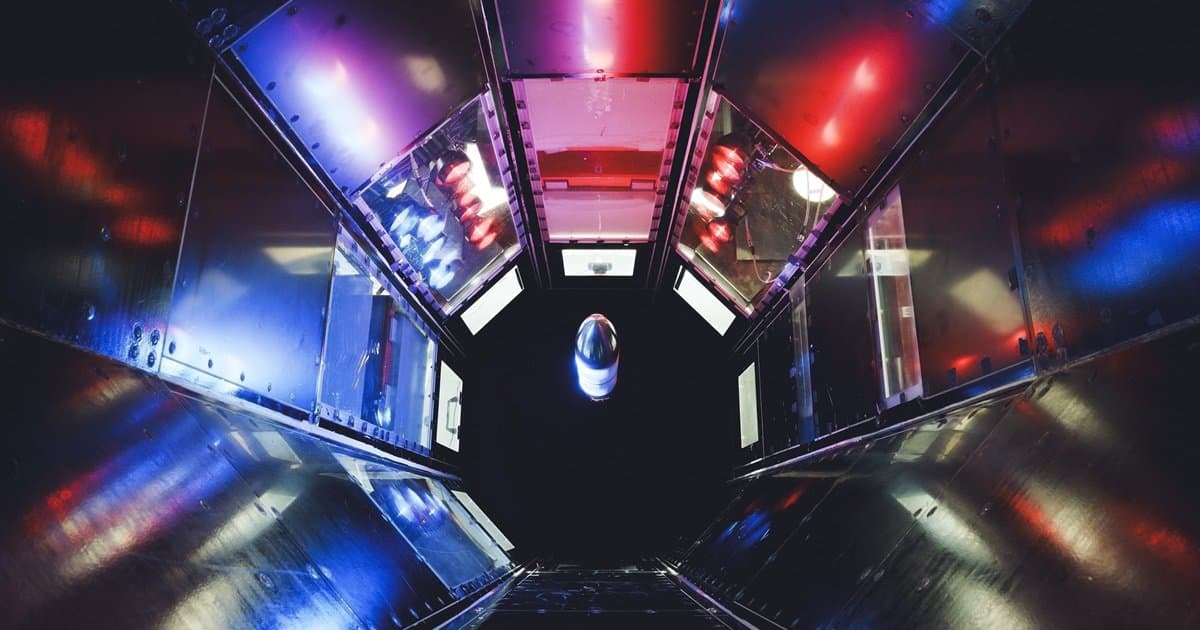

The roughness, called Distributed Micro-Roughness (DMR), is tiny: just 1.0% of the boundary layer thickness. That's 38–53 μm glass beads or sandblasted patterns applied to the surface. The team tested a streamlined body in Tohoku's 1m Magnetic Suspension and Balance System (MSBS) — the world's largest of its kind. This wind tunnel holds the model with magnetic levitation, eliminating the support strut interference that plagues conventional wind tunnels.
How They Proved It Was Friction, Not Separation
Aerodynamic drag has two components: pressure drag (from flow separation) and skin friction drag (from viscous shear). The team used Large Eddy Simulation (LES) to establish a conservative upper bound for pressure drag: Cp ≈ 0.00021. The observed drag reduction (ΔCD ≈ 0.001) is 5 times larger than this upper bound. Even if flow separation were completely eliminated, it would explain only about 20% of the measured reduction. Therefore, the effect comes from direct suppression of skin friction drag.
The Mechanism: Delaying Transition to Turbulence
DMR works by delaying the laminar-to-turbulent transition in the boundary layer. In smooth surfaces, transition occurs early, creating turbulent flow with high skin friction. DMR keeps the flow laminar longer, reducing friction. This is counterintuitive because traditional roughness (like sandpaper) promotes turbulence and increases drag. DMR is a specific, random micro-pattern that, under the right conditions, stabilizes the laminar flow.
Why This Matters for Developers
You're not designing aircraft, but the principle applies to any system where fluid flow meets surfaces: drone propellers, wind turbine blades, even data center cooling fans. Any rotating machinery with aerodynamic surfaces could benefit. The key insight: surface texture is a design parameter, not just a manufacturing tolerance.
What's Next
The team used glass beads and sandblasting. Next steps: engineering DMR into manufacturing processes — injection molding, 3D printing, or coating. The paper (DOI: 10.1017/jfm.2026.11520) is behind a paywall, but the press release details are clear. If you work on CFD or aerodynamic design, start thinking about how to model DMR surfaces in your simulations.
Technical Details from the Paper
- Roughness height: 38–53 μm (convex beads) and equivalent concave patterns
- Boundary layer thickness: Roughness height = 1.0% of local boundary layer thickness
- Drag reduction: Up to 43.6% measured via MSBS
- Model: Streamlined body (similar to an airfoil or fuselage)
- Simulation: LES with pressure drag upper bound Cp ≈ 0.00021
- Verification: Oil flow visualization confirmed no separation changes
The Team
- Lead: Aiko Yakeno, Associate Professor, Institute of Fluid Science, Tohoku University
- Co-authors: Hiroyuki Okuizumi, Kento Inokuma, Yoshinobu Watanabe
- Paper: Journal of Fluid Mechanics, 2026, DOI: 10.1017/jfm.2026.11520
References
- Press release: Tohoku University
- Paper: DOI 10.1017/jfm.2026.11520
